Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Injection System | |
| Screw Diameter | 65 mm |
| Screw L/D | 22:1 |
| Injection Weight | 540 g |
| Heating Power | 20 KW |
| Barrel Zones | 5+N |
| Injection Stroke | 200 mm |
| Clamping System | |
| Injection Clamping Force | 1100 KN |
| Injection Opening Stroke | 140 mm |
| Blow Clamping Force | 150 KN |
| Blow Opening Stroke | 140 mm |
| Rotary Table Lift | 70 mm |
| Mould | |
| Max Platen Size | 1100 x 460 mm |
| Mould Thickness | 280 mm |
| Max Bottle Diameter | 120 mm |
| Max Bottle Height | 220 mm |
| Volume Range | 1 – 2000 ml |
| Stripping Stroke | 260 mm |
| Hydraulic System | |
| System Pressure | 14 MPa |
| Motor Power | 22 + 22 KW |
| Dry Cycle | 4 s |
| Total Power | 80 KW |
| Utilities | |
| Compressed Air | 0.7 – 1.2 MPa |
| Cooling Water | 4 m³/h |
| Machine | |
| Dimensions (L×W×H) | 5.0 × 1.8 × 2.2 M |
| Net Weight | 15 T |
Max Cavity Reference
| Volume | 10 ml | 30 ml | 60 ml | 100 ml | 250 ml | 500 ml | 1000 ml |
|---|---|---|---|---|---|---|---|
| Max Cavities | 24 | 22 | 18 | 14 | 10 | 8 | 6 |
*Cavity counts are for reference only and subject to bottle design. Contact our engineering team for a project-specific assessment.
Overview

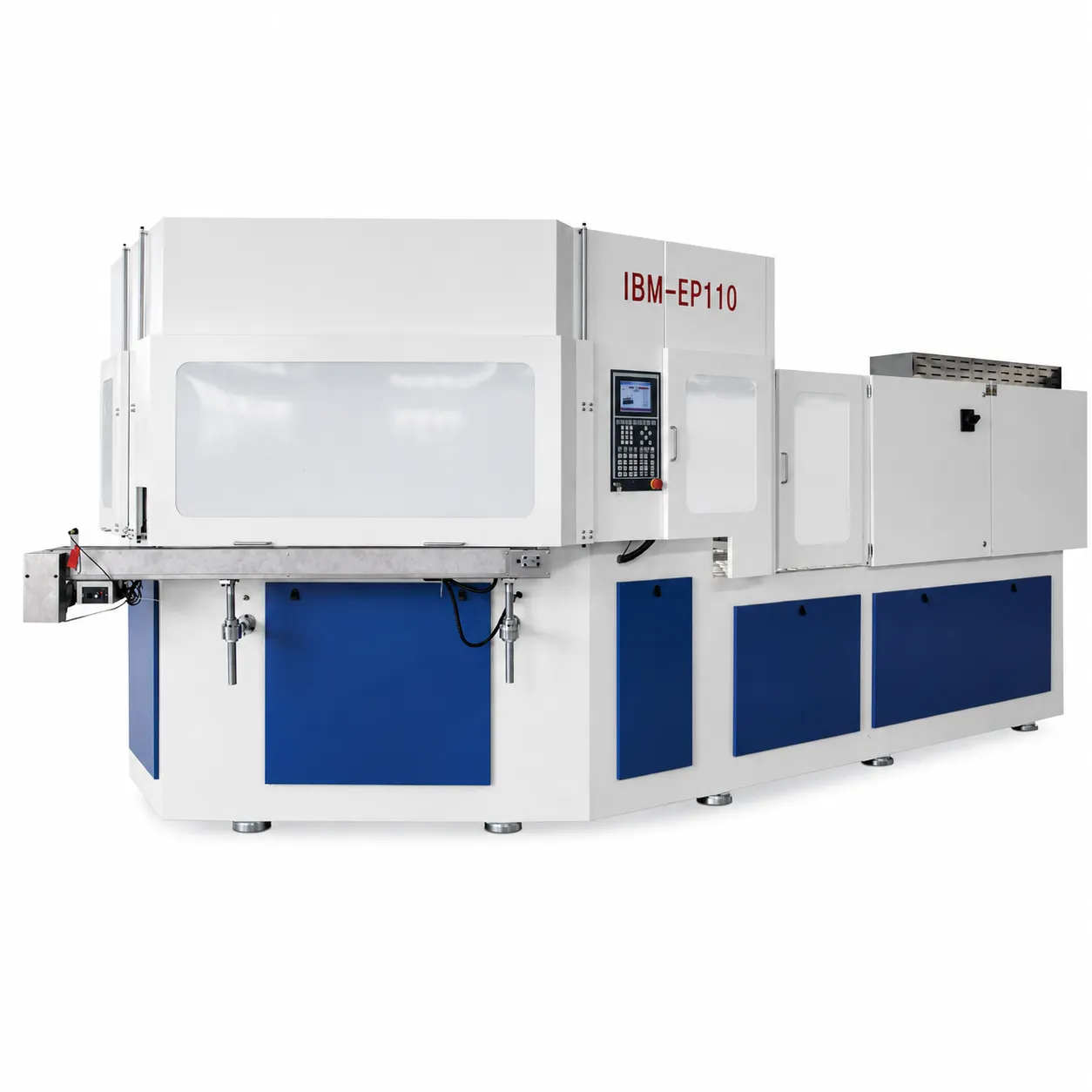

The EP-IBM110 is Ever-Power’s heavy-duty industrial injection blow molding machine, designed for manufacturers who require high-volume continuous output across pharmaceutical, food, and chemical packaging lines where uptime and dimensional consistency are non-negotiable. With 1,100 KN injection clamping force, 24-cavity capacity at 10 ml, and a 1,100 × 460 mm platen, the EP-IBM110 provides the structural rigidity and throughput required for demanding 24/7 production environments.
Standard dual hydraulic system and precision angle divider deliver 20–30% lower energy consumption than single-system machines while maintaining synchronised high-speed operation. A 540 g injection capacity with 5+N barrel heating zones provides the process window needed for challenging engineering resins including PCTG and engineering-grade PP. Bottles from 1 ml to 2,000 ml are supported on the same platform, making the EP-IBM110 versatile across multi-product pharmaceutical and food packaging lines.
Key Technical Features
1100 KN at Industrial Scale
1,100 KN injection clamping supports 24-cavity moulds running continuously across multi-shift schedules without mould deflection or cavity-pressure imbalance.
Synchronised Angle Divider
High-precision angle divider delivers simultaneous mould open/close and rotary-table lift, eliminating preform positional error at 24-cavity density.
Dual Hydraulic Standard
Standard dual-circuit hydraulics lower energy consumption 20–30% versus single-system designs — critical when the machine operates three shifts per day seven days per week.
5+N Barrel Heating Zones
Five primary plus additional zones provide the melt-temperature resolution needed for 540 g shot weights and demanding resins including PCTG and engineering PP at 24-cavity throughput.
1100×460 mm Platen
Large platen area accommodates wide-body moulds for food and chemical containers alongside high-cavity pharmaceutical tooling on the same platform.
260 mm Stripping Stroke
Extended stripping stroke reliably ejects finished bottles from 24 core rods simultaneously across tall bottle formats up to 220 mm in height.
Application Industries
Large pharmaceutical manufacturers use the EP-IBM110 for high-volume oral liquid bottles, ophthalmic containers, and diagnostic reagent vials where consistent neck tolerance is subject to regulatory audit. Food-sector converters deploy it for dairy bottles, nutritional supplement containers, and condiment packaging in food-grade HDPE and PP. Chemical-sector customers value 24-cavity capacity for chemically resistant container production. OEM contract packaging operations select the EP-IBM110 for multi-product flexibility across pharmaceutical, food, and household chemical clients.
Large-Scale Pharma
Food Processing
Chemical Packaging
OEM Contract Packaging
Healthcare Supplements
Mould System
Injection and blow mould packages for the EP-IBM110 are manufactured in 4Cr13 stainless steel or S136 alloy steel. Hot-runner system and preform geometry are optimised for 540 g shot weights and 24-cavity cavitation. Mould qualification documentation is available for pharmaceutical IQ/OQ/PQ validation programmes. All cavity dimensions are inspected against drawing tolerances before shipment, with inspection records provided as part of the mould documentation package.
Production Line

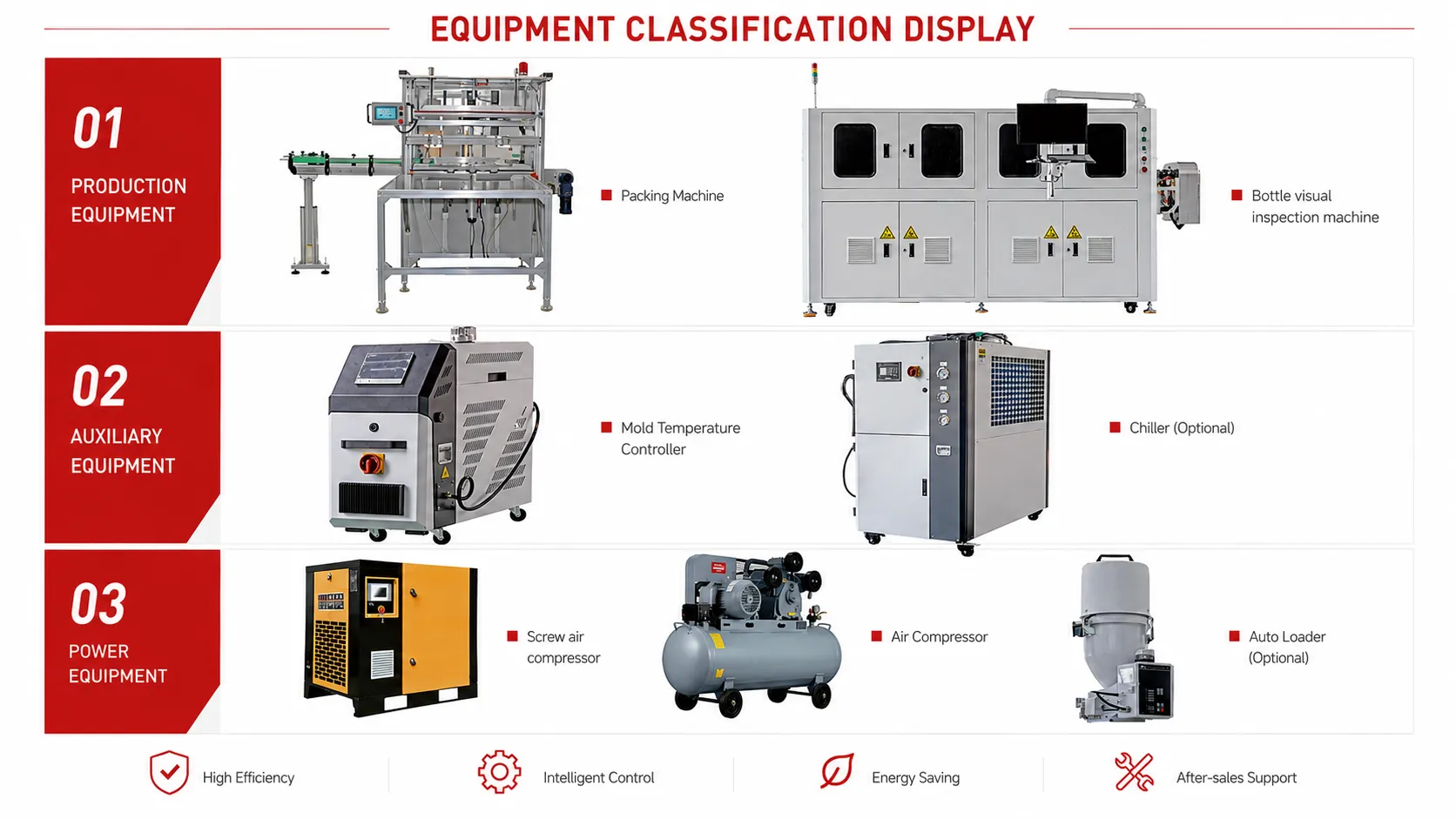

Ever-Power offers a complete turnkey auxiliary package for the EP-IBM110: dual screw air compressors, dual mould temperature controllers, industrial water chiller, high-speed visual inspection machine, automatic material loader, and automatic packing line. All equipment is sized for 24-cavity continuous operation. Request a full turnkey line proposal from our engineering team with your facility layout and production brief.
Certification & After-Sales
Every EP-IBM110 carries CE marking and is factory-tested before shipment. On-site commissioning, operator training, and GMP-compatible installation documentation are included with every order. Our 24/7 technical hotline and field engineer network provide emergency production support globally. A preventive maintenance programme with machine-specific service intervals is available for the EP-IBM110 platform.
*All technical data is for reference only. Specifications may be updated without notice. Contact [email protected] for the current confirmed datasheet before committing to a purchase decision.
Industrial-Scale IBM — Meeting 24/7 Production Demands
The EP-IBM110 is engineered for production environments where the machine must sustain full-rated output across three daily shifts, seven days per week, with minimal planned maintenance interruption and predictable uptime for production scheduling. At 1,100 KN injection clamping force and 15 tonnes net weight, the machine’s structural frame is designed to absorb the cumulative fatigue loads of high-cycle 24/7 operation without frame deflection or bearing wear that would cause progressive dimensional shift in cavity outputs over time.
The 5+N barrel heating zones on the EP-IBM110 are specifically designed for the demands of 540 g shot weights at 24-cavity density. At large injection volumes, maintaining uniform melt temperature across the full shot length requires more independent temperature control points than at smaller shot weights, because temperature gradients between the feed zone and the nozzle become more significant as screw length and residence time increase. The EP-IBM110’s 5+N zone configuration provides the thermal profile resolution needed to maintain consistent melt quality at 24-cavity output across all resin families in the machine’s compatibility range.
The 260 mm stripping stroke on the EP-IBM110 — longer than the 220–230 mm stripping stroke on the EP-IBM40, EP-IBM60, and EP-IBM80 — provides the clearance needed for reliable simultaneous ejection of finished bottles from 24 core rods across the full height range of bottles the machine can produce. For tall bottles approaching the 220 mm maximum height, the additional stripping stroke ensures the bottle is fully clear of the core rod before the rotary table begins its index motion to the next cycle, preventing interference between the ejecting bottle and the adjacent mould station.
EP-IBM110 — Built for Continuous Industrial-Scale Output
The step from the EP-IBM80 to the EP-IBM110 is not simply a step up in clamping force and cavity count: it is a step up in the operational context for which the machine is designed. The EP-IBM80 is optimised for mid-to-large pharmaceutical and food packaging operations running two or three shifts per day. The EP-IBM110 is designed for industrial-scale operations where the machine is expected to run at full rated output continuously with no scheduled idle time, where production targets are measured in hundreds of millions of bottles per year, and where unplanned downtime has direct commercial consequences for supply commitments to major pharmaceutical or food brand customers.
The 1,100 KN injection clamping force provides the structural assurance needed for 24-cavity production at industrial cycle rates across extended continuous operation. At this cavity count and clamping force level, mould wear and deflection monitoring becomes a critical maintenance discipline: Ever-Power’s preventive maintenance programme for the EP-IBM110 includes periodic mould parting-surface flatness verification and cavity-pressure balance assessment to ensure that dimensional consistency across all 24 cavities is maintained as the mould accumulates production cycles. The 5+N barrel heating zones provide the additional thermal control granularity needed to maintain consistent melt quality at 540 g shot weights across all resin types in the machine’s compatibility range.
For manufacturers in Brazil and Latin America supplying pharmaceutical and food multinationals who specify IBM bottle quality as a supply condition, the EP-IBM110’s combination of CE certification, 24-cavity output at 1,100 KN, and comprehensive after-sales support from Ever-Power’s global service network provides a supply chain-credible production solution that satisfies the procurement and quality requirements of major brand customers.
Resin Compatibility & Process Versatility
The EP-IBM110 processes the full range of thermoplastic resins used in pharmaceutical, food, and chemical packaging, with particular strength in demanding engineering resins that require precise melt-temperature control at large shot weights. HDPE, LDPE, and PP are processed routinely at 24-cavity density on the EP-IBM110. High-clarity PS and lactic-acid PS are processed for pharmaceutical and cosmetic applications requiring bottle transparency. PCTG, ABS, EVA, and environmental corn-based bio-resins are compatible with the machine’s 5+N barrel zone configuration. The 540 g injection weight capacity and 200 mm injection stroke ensure adequate process window for all resin families across the machine’s full bottle volume range of 1 ml to 2,000 ml.
For contract packaging manufacturers operating the EP-IBM110 across multiple client product lines with different resin specifications, the machine’s multiple independent barrel heating zones allow resin transitions to be managed through controlled temperature profile adjustments rather than full purging cycles, reducing material waste and downtime during product changeovers between different resin families. Our applications engineering team can provide specific purging and changeover procedures for common resin transition sequences on the EP-IBM110 platform.
Plan Your EP-IBM110 Production Line
Share your output targets, bottle design, resin types, and downstream requirements. Our engineers will return a complete line proposal with mould configuration and auxiliary equipment within 48 hours.
